Specifications
|
Product Name |

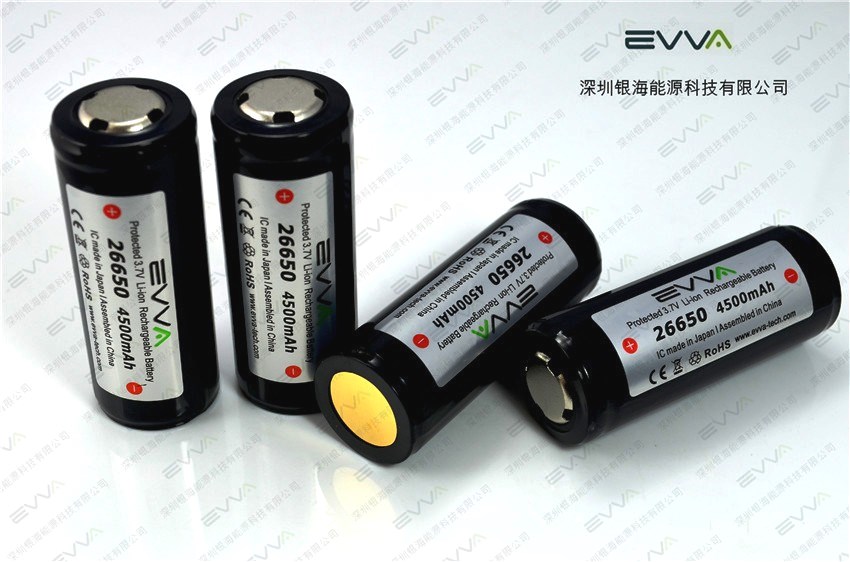

26650 Protected lithium battery 4500mAh |
|
Supplier |
EVVA TECHNOLOGY CO.,LIMITED |
|
Nominal voltage |
3.7V |
|
Nominal capacity |
4500mAh discharge at 0.2C mA |
|
Minimum capacity |
3950mAh |
|
Stanard Charge voltage |
4.20V ( Full Charged Voltage ) |
|
Standard Charge current |
2000mA |
|
Charge Time(Std.) |
3 hours |
|
Discharge cut-off voltage |
2.75V |
|
PCB Protection trip current |
about 10A |
|
Operating environment |
Charging, 0°C ~ 45°C ; 65±20%RH |
|
Discharging, -20°C~60°C ; 65±20%RH |
|
|
Storage environment |
-20°C~60°C; Less than 1 month |
|
-20°C~60°C; Less than 3 months |
|
|
Cell Weight ) |
92g approx. |
|
Cell Dimension |
(L)70.20mm*(D)26.50mm max. |
