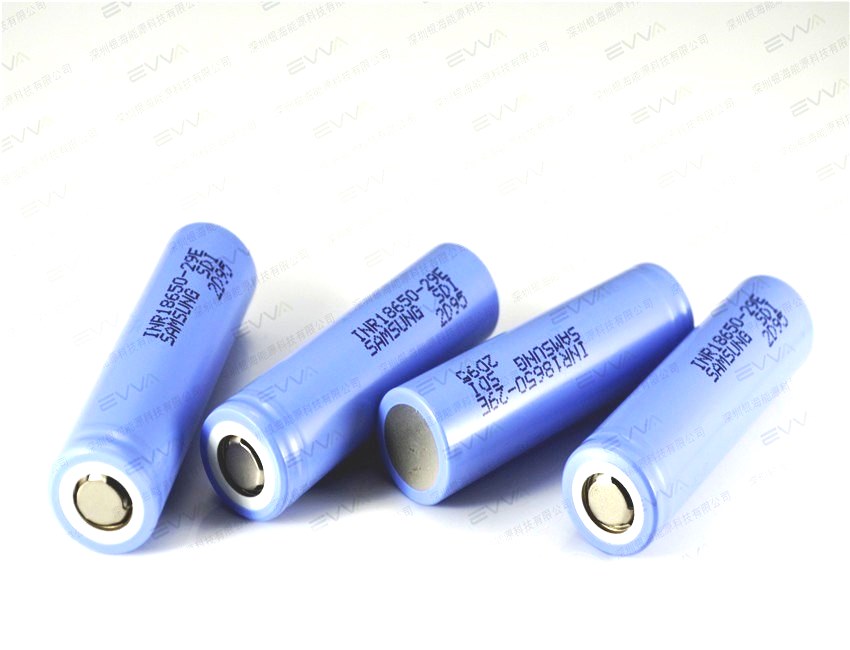

Samsung INR18650-29E 2900mAh 10A High Drain Cell for E-bike


Suitable for most elcetronic devices, especially power tools such as e-bike and drill, e-cigarettes.

Specifications

NO. Item Specifications
1 Nominal Voltage 3.65V  (0.2C discharge)
2 Nominal Capacity 2850mAh  (0.2C, 2.50V discharge)
3 Charging Voltage  4.20 ± 0.05 V
4 Nominal discharge capacity 2000mAh
Charge: 1A, 4.20V,CCCV 100mA cut-off,
Discharge: 0.2C, 2.5V discharge cut-off
5 Standard charge 1,375mA
6 Max. charge current 2,750mA (not for cycle life)
5 Rapid charge CC-CV, 4A, 4.20 ± 0.05 V, 100mA cut-off
6 Charging time Standard charge : 3 hours
7 Max. discharge current
Temperature cut-off 70°C

2,750mA (continuous discharge)

8,250mA (not for continuous discharge)

8 Discharge cut-off voltage
End of discharge
2.5V
( 2.5V discharge cut-off is better in cycle life )
9 Cell weight

45.0g max.

10 Cell dimension

Height : 65.00mm max.
Diameter : 18.40mm max.

11 Operating temperature
(surface temperature)

 Charge : 0 to 45
(recommended recharge release < 45°C)
Discharge: -20 to 60
(recommended re-discharge release < 60°C)

12 Storage temperature
(Recovery 90% after storage)

1.5 year -20~25°C(1*)
3 months -20~45°C(1*)
1 month -20~60°C(1*)

Note (1): If the cell is kept as ex-factory status (50% of charge),
The capacity recovery rate is more than 80%.



Applications

Suitable for most elcetronic devices, especially power tools such as e-bike and drill, e-cigarettes.
