Specifications
| Item | Specification | Notes |

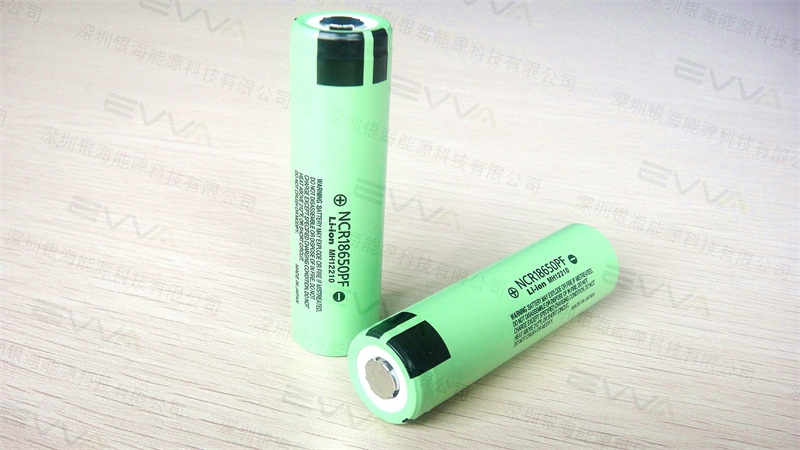

| Model Name | Pana-sonic NCR18650PF | |
| Mark | Genuine Grade A battery cell, made in Japan | |
| Capacity | Minimum: 2750mAh | 0.54A discharge at 20°C |
| Typical: 2900mAh | 0.54A discharge at 20°C | |
| Nominal Voltage | 3.6V | 0.54A discharge at 20°C |
| Charging Current | 1.35A | |
| Charging Voltage | 4.20±0.03V | |
| Charging Time | 4.0 hours | |
| Continuous Discharge Current (max.) | 10A | 0-40°C |
| Internal Resistance | Less than 35mΩ | AC impedance 1kHz |
| Size |
18.6x65.2mm |
|
| Charge Method |
CVCC |
|
| Cut-off Discharge |
2.5V |
25°C |
| Weight |
less than 47.0g |
|
Applications
Power tools
Electric bike battery pack and other battery packs
Other electronic devices
