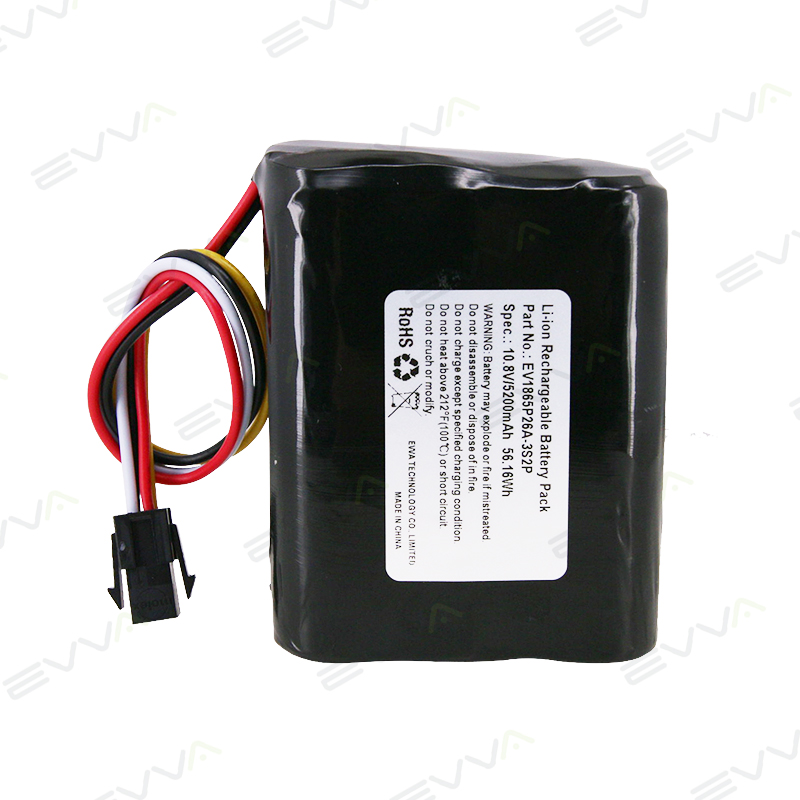

| Model | EV1865P26A-3S2P |
| Part No. | 3002-03-AM15 |
| Cell origin | Molicel Low weather high drain cell |
| Nominal Capacity | 5200mAh (customized) |
| Nominal Voltage | 10.8V |
| Std.Charge Voltage | 12.6V |
| Std.Charge Current | 0.5C |
| Std. Discharge Current | 0.2C |
| Max. Discharge Current | 10~20A (Customized) |
| PCM built-in | Yes |
| Connector | Customized |
| PCM function | Protect battery from over-charge, over-discharge and short circuit |
| Discharge Cut-off Voltage | 8.25V |
| Dimension | (L)54.60mm*(W)36.50*(H)69.20mm approx. |
| Weight | 300g max. |
| Operating Temperature |
Charge: 0~45dgC Discharge: -40~60dgC |
