Deep Cycle High Density BYD 3.2V 102Ah Pristmatic LiFePO4 Battery Pack for Solar Energy System

Grade A BYD 3.2V 102Ah LifePo4 pristmatic battery, with deep cycle life and high capacity performance
Items Criteria
Model BYD C47F
Rated Capacity 102Ah
Rated Energy 326Wh
Nominal Voltage 3.2V
Working Voltage Range 2.5~3.65V
Standard Charge Current 20A@25℃, CC-CV
Max. Continuous Charge Current 51A@25℃
Standard Discharge Current 20A@25℃, CC
Max. Continuous Discharge Current 120A@25℃
Discharge Cut-off Voltage 2.5V
Cell Weight 1.93kg

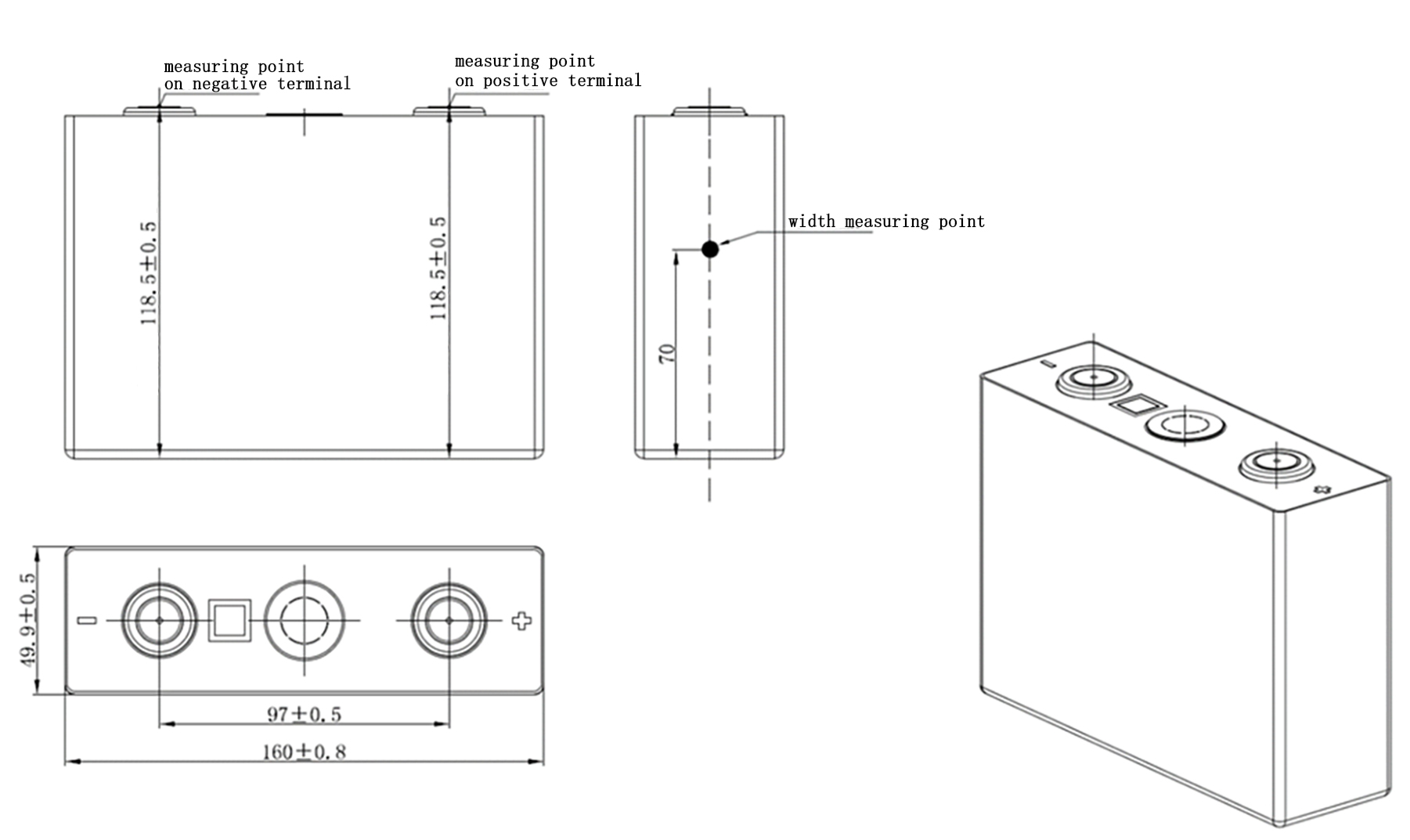

Cell Dimension L: 160mm
H: 118.5mm
T: 49.9mm
Internal Impedance ACIR: ≤0.35mΩ, 25%SOC
DCIR: ≤1.8mΩ, @25%SOC
Operating Temperature Charge: -20~55℃
Storage Humidity 5%~95%
Storage Temperature -20~+45℃(<1 month, 25%SOC)
-20~+35℃(<1 year, 25%SOC)
Cycle Life Over 4000
With the features of deep cycle life, high density, safety and wide temperature operation range, it can be widely applied in the field of solar power system,Home Applicances,Electric vehicles,Golf carts,electric scooter,electric bicycle, electric motorcycle and so on.
